Framed structure and convenient removable form, it is mounted with an imported
full-automatic burner, interlocked with temperature.
Easy operation. Multi-fuel optional, multi-models optional.

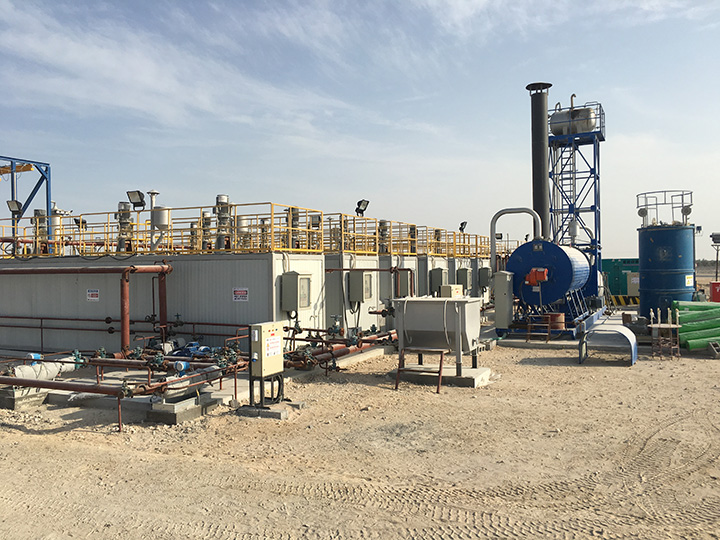

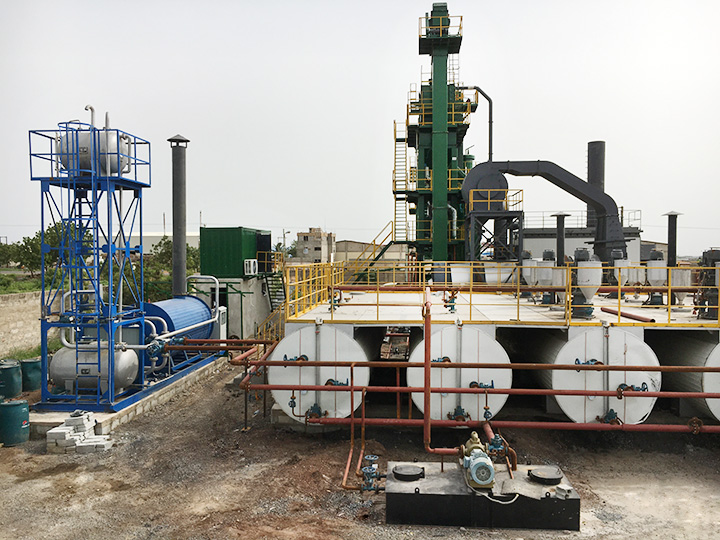

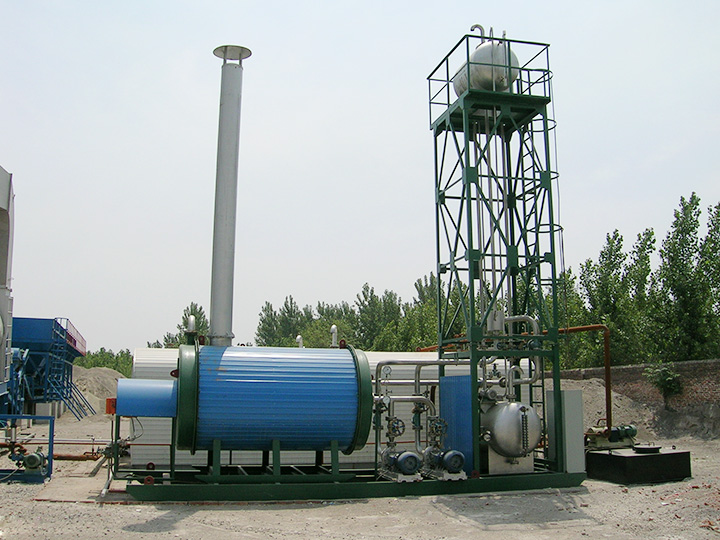

Oil or gas thermal oil heater

Entirety type, no need boiler room. Easy installation and moving. Its capacity can be 0.5 million Kcal/h to 6.0 million Kcal/h

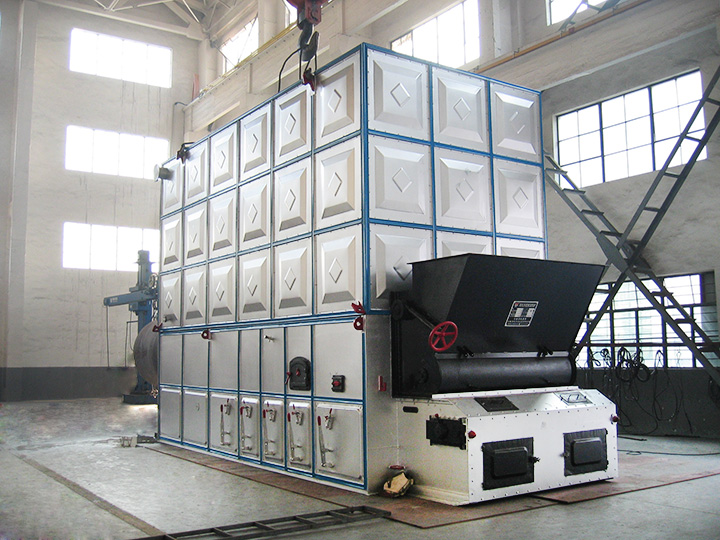

Coal thermal oil heater

Horizontal type. Its capacity can be 1.6 million Kcal/h to 10 million Kcal/h
Specifications:

Main technical parameters:
Oil / Gas Thermal Oil Heater
Type
        Data
Parameters
 180
Y(Q)		 350
Y(Q)		 580
Y(Q)		 820
Y(Q)		 940
Y(Q)		 1200
Y(Q)		 1400
Y(Q)		 1750
Y(Q)		 2400
Y(Q)		 2900
Y(Q)		 3500
Y(Q)		 4000
Y(Q)		 4700
Y(Q)		 5800
Y(Q)		 7000
Y(Q)
Rated Heat Output
(104Kcal/h)		 15 30 50 70 80 100 120 150 200 250 300 350 400 500 600
Designed Pressure
(MPa)		 0.6 0.6 0.6 0.6 0.6 0.7 0.7 0.6 0.6 0.6 0.6 0.6 0.7 0.7 0.8
Max. Working Temperature
(℃)		 320 320 320 320 320 320 320 320 320 320 320 320 320 320 320
Thermal Efficiency
(%≥)		 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80
Cycle Flow Rate
(m3/h)		 40 40 60 100 100 100 100 160 160 200 200 260 260 300 340
Caliber of the Pipe Connected
(DN)		 65 65 80 100 100 125 125 150 150 200 200 200 200 200 250
Fuel Available Oil or Gas
Reserve the right to change the parameters without prior notice.
Coal Thermal Oil Heater
Type
Data
Parameters
 120
MA		 180
MA		 290
MA		 350
MA		 470
MA		 700
MA		 940
MA		 1200
MA		 1400
MA		 1860
MA		 2400
MA		 2900
MA		 3500
MA		 4000
MA		 4700
MA		 5800
MA		 7000
MA		 8200
MA		 9400
MA		 12000
MA
Rated Heat Output
(104Kcal/h)		 10 15 25 30 40 60 80 100 120 160 200 250 300 350 400 500 600 700 800 1000
Designed Pressure
(MPa)		 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.7 0.7 0.7 0.7 0.7 0.7 0.7 0.7 0.7 0.7 0.7 0.7 0.7
Max. Working Temperature
(℃)		 320 320 320 320 320 320 320 320 320 320 320 320 320 320 320 320 320 320 320 320
Thermal Efficiency
(%≥)		 63 63 63 63 63 63 63 73 73 73 73 73 73 73 75 75 75 75 75 75
Cycle Flow Rate
(m3/h)		 13 32 40 40 60 60 100 100 100 160 160 200 200 260 260 300 340 400 520 600
Caliber of the Pipe Connected
(DN)		 40 65 80 80 100 100 125 125 125 150 150 200 200 200 200 200 250 250 300 300
Fuel Available Coal
Reserve the right to change the parameters without prior notice.
