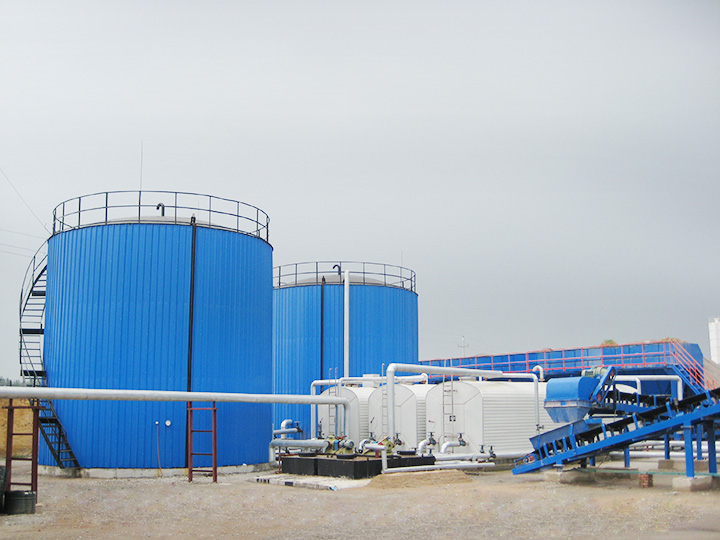

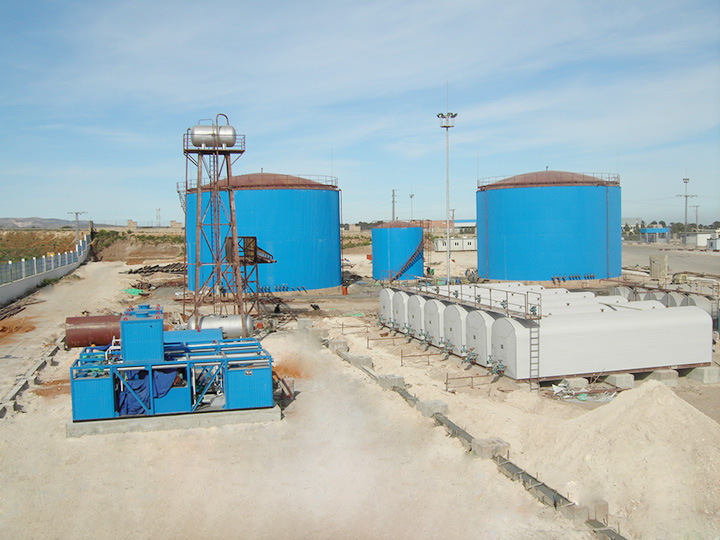

Flexible design satisfies different requirements. Unit tank capacity could be 100t to 3000t accordingly. With thermal oil heating system, it has advantage of quick-heating, temperature easy control, automatically operation, environment friendly and energy saving.
Models are available from 100t to 3000t.
Features:
-
-
-
-
Thermic oil heating system, framed structure, easy installation and moving. Automatic burner, easy operation, heat fast and good for bitumen.
[MORE+]
Specifications:
Main technical parameters:
| Capacity | Diameter (mm) | Height (mm) | Heating Area (m2) | Heating Style | Production Form |
| 100T | φ5200 | 5180 | 39.7 | Entire heating | Tank body welded, 5-layer coil |
| 150T | φ5200 | 7400 | 39.7 | Entire heating | Tank body welded, 5-layer coil |
| 200T | φ6900 | 5930 | 56.0 | Entire heating | Tank body welded, 4-layer coil |
| 300T | φ7562 | 7400 | 75.6 | Layered heating | Tank body welded, 4-layer coil |
| 300T | φ7562 | 7400 | 76.0 | Entire heating | Tank body welded, 4-layer coil |
| 500T | φ9460 | 7400 | 193.9 | Layered heating | Tank body welded, 6-layer coil |
| 500T | φ9460 | 7400 | 124.9 | Entire heating | Tank body welded, 4-layer coil |
| 80T | φ10500 | 9780 | 145.9 | Entire heating | Tank body welded, 4-layer coil |
| 1000T | φ11462 | 10350 | 180.6 | Layered heating | Tank body welded, 4-layer coil |
| 1000T | φ11462 | 10350 | 168.0 | Entire heating | Tank body welded, 4-layer coil |
| 2000T | φ15780 | 11430 | 374.0 | Layered heating | Tank body welded, 5-layer coil |
| 2000T | φ15780 | 11430 | 395.0 | Entire heating | Tank body welded, 5-layer coil |
| 3000T | φ18900 | 11620 | 527.0 | Layered heating | Tank body welded, 5-layer coil |
Reserve the right to change the parameters without prior notice.
