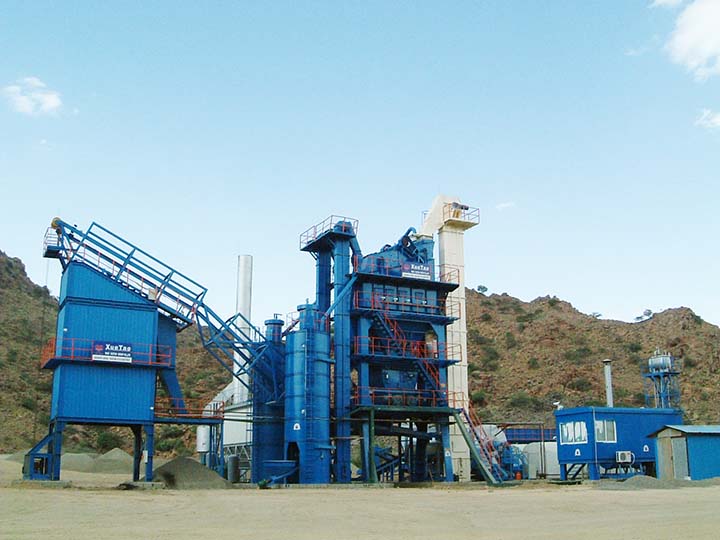

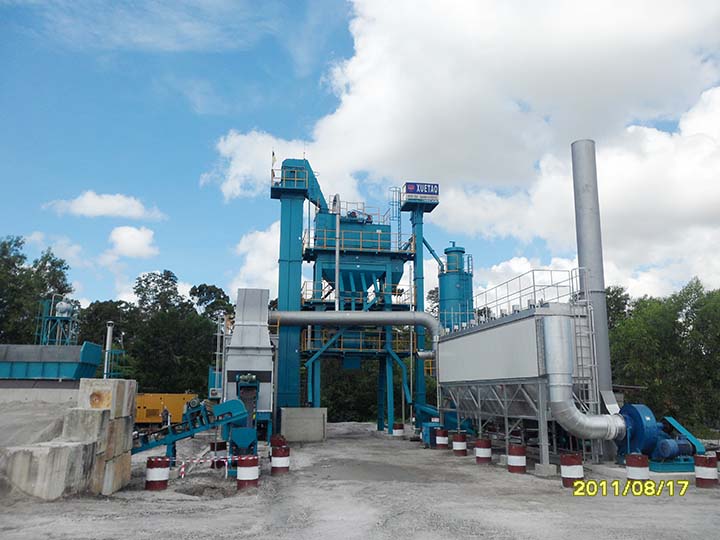

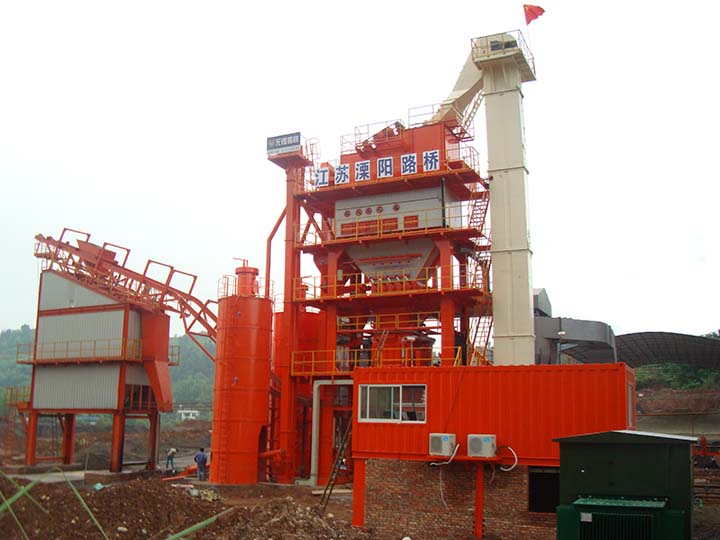

MODULAR, EASY INSTALLATION, HIGH PERFORMANCE
Models are available from 40t/h to 400t/h.
-
Cold feed hoppers
Inverter for belt feeders, speed adjustment will be shown on screen in control room, more accuracy, low malfunctions. Every hopper has material-out-alarm. Oversize meshes for hoppers, efficiently avoid large aggregate into the system. Vibrators are installed for the sand hoppers to avoid material blockage.
[MORE+] -
Dryer drum
Inclined friction driven, the dryer drum is high heating efficiency and liable operation.
[MORE+] -
Vibration deck
Unique inclined angle, oil lubricated shaft, the vibration deck can meet requirements for high level road constructions. Easy access for replacement.
[MORE+] -
-
Product storage silo
Variable storage capacity available. Two models optional: by side and built-in.
[MORE+] -
Control system
Automatically control and monitor system, easy operation, low malfunctions. Newly developed Remote Service System makes our service much faster and better.
[MORE+]
Main technical parameters:
|
Model
Specification
|
AMP 500-B |
AMP 700-B |
AMP 1000-B |
AMP 1000-C |
AMP 1500-C |
AMP 2000-C |
AMP 2500-C |
AMP 3000-C |
AMP 3500-C |
AMP 4000-C |
AMP 5000-C |
| Rated Output (t/h) | 40 | 50 | 80 | 80 | 120 | 160 | 180 | 220 | 260 | 320 | 400 |
|
Mixing Capacity (Kg/batch) |
500 | 700 | 1000 | 1000 | 1500 | 2300 | 2500 | 3000 | 3800 | 4300 | 5300 |
|
Installed Power (without finished material silo) (kw) |
120 | 161 | 175 | 280 | 330 | 430 | 494 | 628 | 708 | 820 | 991 |
| Total Area (m2) |
28×25 =700 |
30×25 =750 |
35×30 =1050 |
35×30 =1050 |
40×34 =1360 |
45×36 =1620 |
40×40 =1600 |
60×40 =2400 |
60×40 =2400 |
60×40 =2400 |
68×40 =2720 |
| Oil Consumption (kg/t) | ≤6.2 | ||||||||||
| Fuel | Pulverized Coal, Diesel oil, Heavy oil, Gas | Diesel Oil, Heavy Oil, Gas | |||||||||
|
Product Temperature (℃) |
130-160 | ||||||||||
|
Environment Noise [dB(A)] |
≤85 | ||||||||||
|
Noise Around Operators [dB(A)] |
≤80 | ≤70 | |||||||||
| Dust Collection | Venturi Wet | High Pressure Pulse Bag Filter | |||||||||
|
Dust Emission Concentration [mg/Nm3] |
≤200 | ≤75 (wet type deduster added ≤50) | |||||||||
